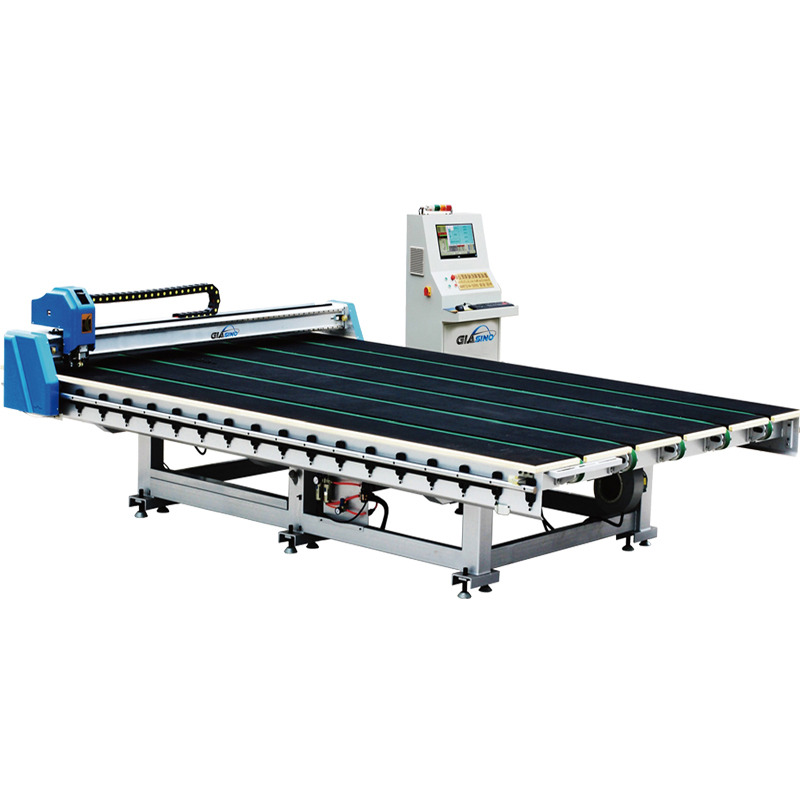

Building Material Stores Factory Price Fully Automatic CNC Glass Cutting Machine

1 set
MOQ
Building Material Stores Factory Price Fully Automatic CNC Glass Cutting Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works , Advertising Company, Other
Showroom Location: Egypt, Germany, India, Russia, South Korea, UAE
Condition: New
Machine Type: Glass Cutting Machine
Production Capacity: 100%
Voltage: 380V/50Hz
Power: 10kw
Dimension(L*W*H): 5320*3100*1300mm
Weight: 3500 kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 3-25mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Motor, PLC
Glass thickness: 3-20mm
Motor: Japan Yaskawa
Color: Customer Require
Usage: Glass Cuting
The smoothness: ≤±0.2mm/m
Product name: Glass Cutting Mahcine
Function: Cutting Flat Glass
Keyword: CNC Automatic Glass Cutting Machine for Flat Glass Processing Machines
Key words: High Effciency
Grundinformation
Zahlung und Versand AGB
Packaging Details: We will use PE film cover the machine, and add the metal pallet for 2026 manual glass cutting table pricision glass cutter table glass table.
Supply Ability: 50 Set/Sets per Month manual glass cutting table
Produkt-Beschreibung
CNC Automatic Glass Cutting Machine for Flat Glass Processing Machines
Product Description

Glass cutting machine function introduce

1) Work flow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor controlled, glass automatically find glass edge in the X and Y directions. After moving glass sheets to designated location, transport glass to the automatic cutting table.Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph. 2)The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing.
Mechanical characteristic - Mn bridge steel (Q345A ), perfect surface treatment - Perfect machine body structure makes sure the tale flat enough and no out of shape - Japan SMC valve controls the cutting pressure according to different thickness glass - Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections - High density water-proof table - Imported felt, high flatness, antistatic - 3D edge searing system, high precision automatic location function - Automatic lubrication system, work in step with cutter head - Air float function and belt transmit - Linear guide rail makes sure the high cutting precision and low noise

Main electric parts:
- CNC System: Galil
- Optimization software: Optima (Italy)/Guiyou (China best brand)
- Servo motor: YASKAWA (Japan)
- Pneumatic parts: Airtec (Taiwan)
- Low voltage electric parts: Schneider (France)
- Cutting pressure valve: SMC (Japan)
Technical parameters
Model
Max. glass size
Thickness
Dimensions (L*W*H)
Max. speed
Air pressure
CNC-1512
1500*1200mm
2~19mm
2480*2240*1275mm
150m/min
0.6~0.8MPa
CNC-2620
2600*2000mm
2~19mm
3560*2912*1300mm
150m/min
0.6~0.8MPa
CNC-4228
4200*2800mm
3~19mm
5320*3100*1300mm
160m/min
0.6~0.8MPa
CNC-5133
5100*3300mm
3~19mm
6150*4212*1300mm
160m/min
0.6~0.8MPa
CNC-6133
6100*3300mm
3~19mm
7150*4212*1300mm
160m/min
0.6~0.8MPa
Product display
CNC Glass cutting line
We could add Glass loading table + Glass cutting line + Glass breaking table, make it full automatic
Exihibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Eastern Europe(30.00%),North America(26.00%),South America(21.00%),Mid East(10.00%),Southeast Asia(2.00%),Eastern Asia(2.00%),Western Europe(2.00%),Africa(00.00%),Oceania(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%),Domestic Market(00.00%). There are total about5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Glass Cutting Machine/Glass Washing Machine/Glass Edging Machine/Glass Tempering Furnace/Insulating Glass Production Line/Aluminium and uPVC Window Door Machine

4. why should you buy from us not from other suppliers?
1 More than 20 years of design and production experience 2 Master core technology 3 Professional after sales service team 4 Products are exported to many countries and regions 5 Excellent and stable product quality

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency: USD ,EUR, CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
